| Place of Origin: | China |
|---|---|
| Brand Name: | Dehray |
| Certification: | CE |
| Model Number: | RDE12STA |
| Minimum Order Quantity: | 1 |
| Price: | USD |
| Packaging Details: | Plywood board + corrugated box |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 1 per week |
| Model No: | RDE12STA | Rated Power: | 8.5Kw |
|---|---|---|---|
| Max Power: | 9.5Kw | Rated Frequency: | 50Hz |
| Voltage: | 230V | Power Source: | Electric |
| Generator Type: | V-twin,four Stroke,swirl Chamber,water-cooled Diesel Engine | Rated Speed: | 3000r/min |
| Warranty: | 1 Year | ||
| Highlight: | 9kw soundproof generator set,silent diesel generator 60db,9kw silent diesel generator |
||

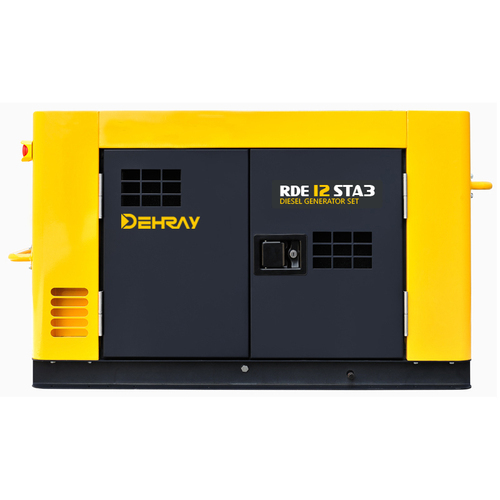

The dehray 9000W Portable Generator offers 8.5kW rated power and 9.5 kW max power, operating at 230V with a noise level of 60dB for quiet performance. It features a 72L fuel capacity, 10h runtime, recoil start, and advanced tech like parallel function and LED display. Certified by ISO, CE, ensuring compliance with global safety standards and providing market access assurance.
| Generating set | RDE12STA/TAi | |||
| Rated frequency | HZ | 50 | 60 | |
| Prime power | KVA | 8.5 | 9 | |
| KW | 8.5 | 9 | ||
| Standby power | KVA | 9.5 | 10 | |
| KW | 9.5 | 10 | ||
| Rated voltage | V | 115/230 | 120/240 | |
| Rated current | A | 73.9/37 | 75/37.5 | |
| Rated rotation speed | r/min | 3000 | 3600 | |
| Generator type | KT12 | |||
| Pole No. | 2 | |||
| Phase number | Single phase | |||
| Excitation mode | Self excitation constant voltage w/AVR i: w/iAVR |
|||
| Power factor | COSΦ | 1.0 | ||
| Insulation grade | F | |||
| Engine type | RD2V80G | |||
| Stucture type | V-twin,four stroke,swirl chamber,water-cooled | |||
| Bore×stroke | mm | 80×79 | ||
| Displacement | L | 794 | ||
| Compression ratio | 23:1 | |||
| Rated power | KW | 12.5 | 14.5 | |
| Lubrication system | Pressure splashed | |||
| Lube oil brand | Above CD or SAE 10-30,15W-40 | |||
| Starter system | 2.27 | |||
| Starter motor capacity | V-KW | 12V electric start | ||
| Battery capacity | V-Ah | 12V 36Ah | ||
| Engine fuel consumption | g/KW.h | 285 | 297 | |
| Fuel type | Diesel:0#(summer),-10#(winter),-35#(chilliness) | |||
| Control panel type | HGM4020N | |||
| Output | Receptacle | 2-single phase | ||
| Connection pole | Available | |||
| Noise level(@7m) | dB(A) | 60 | ||
| Fuel tank capacity | L | 72 | ||
| Net weight | kg | 310 | ||
| Package | Plywood pallet+Carton | |||
| Diemension | 1325*700*880 | |||
