| Place of Origin: | China |
|---|---|
| Brand Name: | Dehray |
| Model Number: | RID2200E |
| Minimum Order Quantity: | 1 |
| Price: | USD |
| Packaging Details: | Plywood board + corrugated box |
| Delivery Time: | 2 weeks |
| Supply Ability: | 1 per week |
| Coil: | Copper | Model: | EU2200i |
|---|---|---|---|
| Noise Level: | 48-57 Decibels | Warranty: | 3 Years Residential And Commercial Use |
| Output Type: | AC 3 Phase | Speed: | 2800-3600rpm |
| Oem: | YES | Frequency: | 50Hz, 60Hz |
| Dimensions: | 20.2 X 11.4 X 16.7 Inches | Rated Voltage: | 220V |
| Run Time: | 8.1 Hours At 1/4 Load | Oil Alert System: | Yes |
| Weight: | 46.5 Pounds | Certifications: | EPA And CARB Compliant |
| Starting Method: | Recoil Start | ||
| Highlight: | 2.0kVA Inverter Generator Set,Inverter Generator Set 2800rpm,3600rpm residential diesel generators |
||

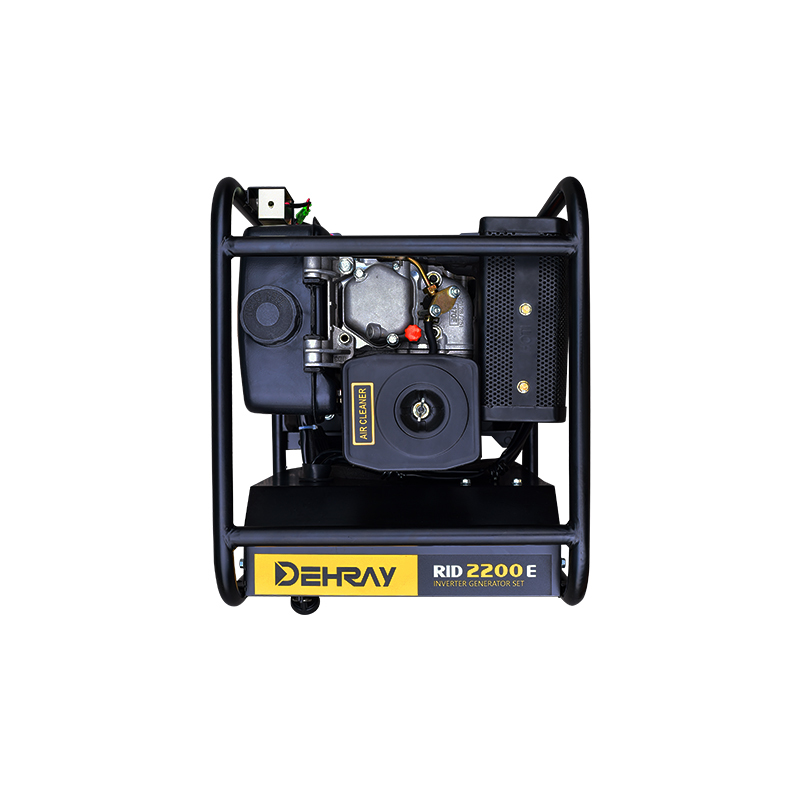

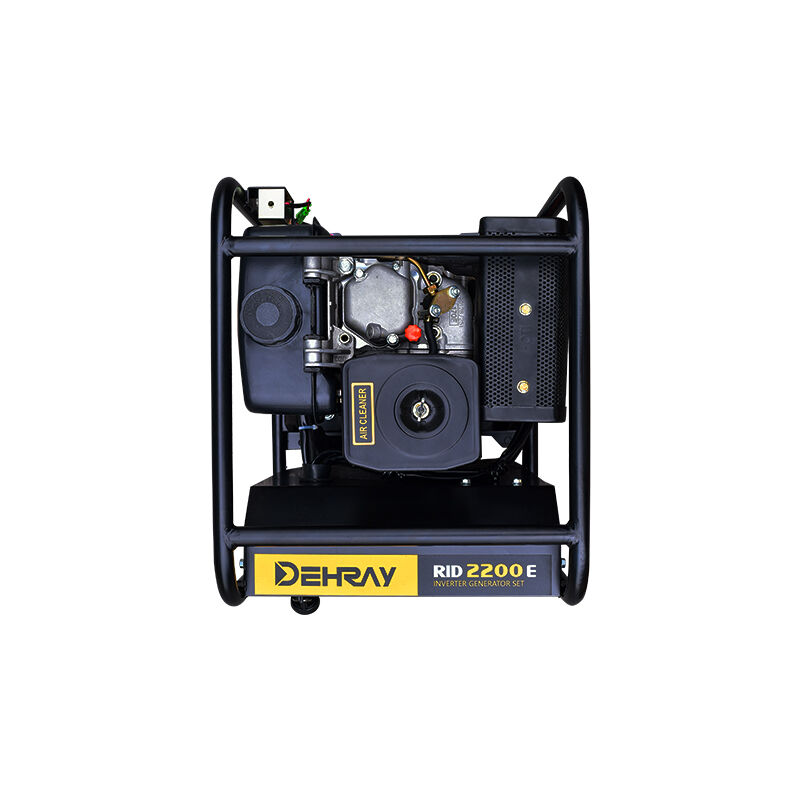

Introducing the RID2200E, a premium inverter diesel generator from DEHRAY’s RID series—crafted to blend the fuel efficiency of diesel with the precision of inverter technology for outdoor adventures, RV travel, rural home backup, and off-grid workspaces. Aligned with DEHRAY’s “SMART POWER FOR EVERY MOMENT," this generator delivers a prime power of 2.0kVA and maximum power of 2.2kVA, operating at a variable speed (3000-5000r/min) to match load demands, ensuring optimal efficiency and reduced noise.
The RID2200E stands out with its diesel inverter system, a rare combination that offers 30% lower fuel consumption than gasoline inverter generators while maintaining longer service intervals. It holds global certifications including CE, CARB, EPA, and PSE, meeting strict emission and safety standards for worldwide use. Its compact and lightweight design (net weight only 38kg) is enabled by an integrated engine-alternator assembly, while the soundproof enclosure and low-torque diesel engine keep noise levels as low as 58-65 dB(A) at 7m—quieter than most gasoline generators in its class.
What truly differentiates the RID2200E is its pure sinewave output (THD < 3%), powered by DEHRAY’s advanced inverter technology, making it safe for sensitive electronics like laptops, cameras, and medical devices. The digital control panel features real-time fuel level, power output, and maintenance alerts, while the auto-idle function reduces engine speed when loads are light, further cutting fuel use and noise. With a 6.5L fuel tank, it provides up to 8 hours of continuous operation at 50% load. Whether you’re camping in remote areas, powering an RV, or backing up home essentials, the RID2200E delivers clean, quiet, and efficient diesel power in a portable package.
| Parameter | RID2200E |
|---|---|
| Rated frequency | 50/60 Hz |
| Prime power | 2.0 kVA |
| Max. power | 2.2 kVA |
| Rated voltage | 230 V (50Hz) / 120 V (60Hz) |
| Rated current | 8.7 A (50Hz) / 18.3 A (60Hz) |
| Engine type | Single-cylinder, 4-stroke, air-cooled diesel engine |
| Engine model | R165F |
| Displacement | 0.299 L |
| Engine rated power | 2.8 kW / 3600 r/min |
| Fuel type | Diesel (0# / -10# according to temperature) |
| Fuel tank capacity | 6.5 L |
| Continuous running time (50% load) | 8 h |
| Lowest fuel consumption | 210 g/kW.h |
| Lube oil capacity | 0.6 L |
| Starting system | Recoil starter |
| Noise level (50% load, 7m) | 58-65 dB(A) |
| Output waveform | Pure sinewave (THD < 3%) |
| DC output | 12V-8.0A |
| Overall dimensions (L*W*H) | 620*380*450 mm |
| Net weight | ≤38 kg |
| Key certifications | CE, CARB, EPA, PSE |
