General Generator

A full lineup to produce optimum power for your needs.


Generators are indispensable as power sources at construction sites. Widely used for farms, houses, live TV broadcasts, various types of events, leisure activities, and other purposes, DEHRAY generators produce the optimal power to meet user needs. Offering high-performance power generation and durability as well as energy conservation and noise reduction, these products have won endorsement as the first choice of professionals around the world.

Output the power you need
Strong, flexible, general, reliable and durable. You can find the most suitable generator here.
Quieter operation, bigger power
High-efficient combustion system ensures sufficient combustion;
Control panel
All operation functions of the generator set are on the control panel, with a digital readable display showing operation time, output voltage and current. Breakers can protect generator set from overload damage.
Lifting hook and transport wheels
Integrated to enable simple and safe loading and transportation.
Easy portable
An open frame configuration means it's easy to handle and store when not in use.
Improved i-AVR technology
i-AVR adjustments are driven off the PMG generator versus a sensor winding in traditional AVR systems.
It can also communicate with your computer with a UART-RS232 interface. This allows the generators data: including voltage, current, and battery voltage to be seen from computer.

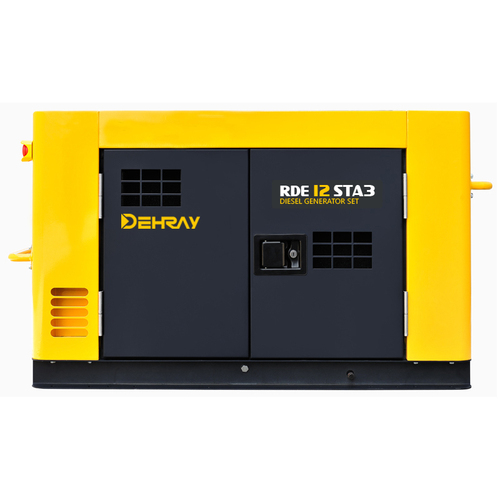

RDE12STA3
General Generator
If you need a generator with high performance to be used near construction sites, farms or houses, DEHRAYgeneral generator will be the best choice.

Super silent
Bigger power
Easy for transportation
Maintenance made simpler
Contact us

Output the power you need

Strong, flexible, general, reliable and durable. You can find the most suitable generator here.



Quieter operation, bigger power

High-efficient combustion system ensures sufficient combustion;

muffler reduces exhaust noise greatly; engine noise is isolated in double structure and absorbed by special lining.

Wide application and wide range capacity can meet all requirements of clients.



Control panel

All operation functions of the generator set are on the control panel, with a digital readable display showing operation time, output voltage and current. Breakers can protect generator set from overload damage.



Lifting hook and transport wheels

Integrated to enable simple and safe loading and transportation.

Generator  set
Rated frequency Hz 50                     60
Rated power kVA 10                    11.5
Max. power kVA 11                   12.65
Rated voltage V 400/230       416/240
Rated current A 14.4                  16
Rated rotation speed r/min 3000               3600
Generator
Pole No.   2
Phase number   Three phase
Excitation mode   Self-exciation and constant voltage(with AVR)
Power factor COS 0.8(lag)
Insulation grade mm F
Engine
Engine type   RD2V80G
Structure type   V-twin, 4-stroke, water-cooled, swirl chamber
Bore x stroke mm 80×79
Displacement L 0.794
Compression ratio mm 23 : 1
Rated power kW 12.5                 14.5
Lubrication system   Pressure splashed
Lube oil brand   Above CD or SAE 10W-30, 15W-40
Lube capacity L 2.27
Starting system   12V Electric starter
Charging generator capacity V-Ah 12V 36Ah
Fuel consumption ratio g/kW.h 285                  297
Fuel type   Diesel : 0# (summer), -10# (winter), -35# (chillness)
Genset
Panel type   General panel
Output Receptacle 2-Single phase, 1-three phase
Output Connection pole with
Nosie level(7m) dB(A) 72
Fue tank capacity L 26
Overall dimensions mm 1350×650×760
Net weight kg 310
