Ultra Silent Generator

The DEHRAY ultra silent range is feature packed and comes with the ruggedness and reliability you demand from a generator.

Firstly, the ultra silent generators are built for multi-drop use and designed to be moved regularly. Whether that be a few meters or hundreds of miles, you can be assured of their easy, safe movement capabilities and guaranteed performance, even in the harshest conditions. This makes the ultra silent perfect for construction and household use.

The DEHRAY ultra silent range provides complete power solutions, making this series the preferred choice for a wide range of applications throughout the world.

Open or silent, single or 3 phase, 50 or 60Hz frequency, plus various voltage options; this range of generators gives you a lot of options for tailoring to meet exact needs.

Robust and durable

Compact, robust and flexible structures ensure long service life and quiet operation.
Thicker painting treatments stand the wear and tear in extreme environmental conditions.

Cleaner, safer and quieter

Waterproof canopy ensures protection against ingress of dust and water.
All DEHRAY generators meet or exceed relevant standards for noise and emission regulations.

Design for easy transportation

Lifting hook and forklift access are standard on all units. Compact structure minimize transportation costs.

Easy to use

Control panel is simple and easy to operate.
Built-in monitoring system ensures safe operation and basic parameter display

Ultra Silent Generator

Powered by renowned Weichai engine; Optional choose alternator, such as Mister, Stamford, LeroySomer, etc; Equipped with world advanced control panel.

20kVA~800kVA（50Hz/60Hz）
Stable structure
Intelligent control system
Easy for transport
Easy for maintenance

describe parameter

Stable structure

With CAE analysis technology, the genset is designed more stable.

PI Design

The latest industrial design technology brings a perfect fusion of appearance and performance.

Intelligent control

The integrated controller can provide multiple functions such as remote control, alarm, data monitoring and protection.

Advanced Waterproof, Dustproof, Sandproof and Rodent Proof Design

Each control panel, each access doors and resident vertical plate of gensets adopts the waterproof, dustproof, sand proof and rodent proof design to avoid the rain, dust and small animals.

Convenient refueling and watering devices

● External oil filler;

● Oil discharge outlet is set at the base frame;

● Water filler is set on the top of canopy.

Easy for transport

● With forklift hole set at the base frame of the genset under 500kVA, it is easy to use forklift;

● With equilibrium lifting lugs on the top of the canopy, it is convenient to load or unload.

Easy for maintenance

● The daily maintenance work can be performed from both sides of the genset, and wide maintenance doors allow easy access to all areas of the genset;

● Canopy of the gensets above62.5kVA can be equipped with ladder, and it is convenient to conduct lifting and inspection of the genset;

● Base frame and canopy can be replaced and dismantled;

● Standardized and integrated wiring and fuel inlet and outlet hoses are easy to be replaced.

Excellent spraying and welding technology

● Adopt high-quality panel sand spray thick materials, as well as three coats of spray technology includes bottom, middle and surface, it has strong performances of corrosion resistance, scratch resistance, rust resistance.

Application scope

It is suitable for environment with high requirement for noise reduction, such as residential area, high-end office buildings, hotels, scientific research institutes, hospitals, universities and colleges, etc.

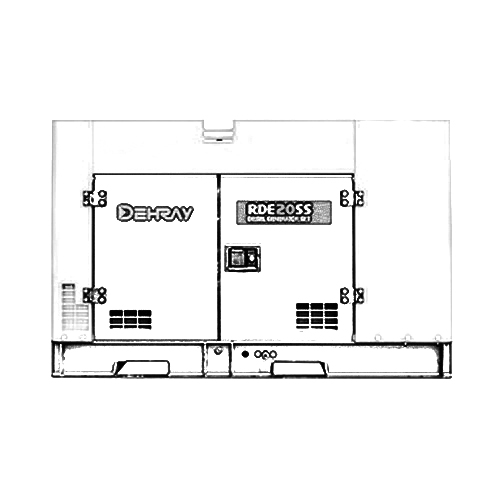

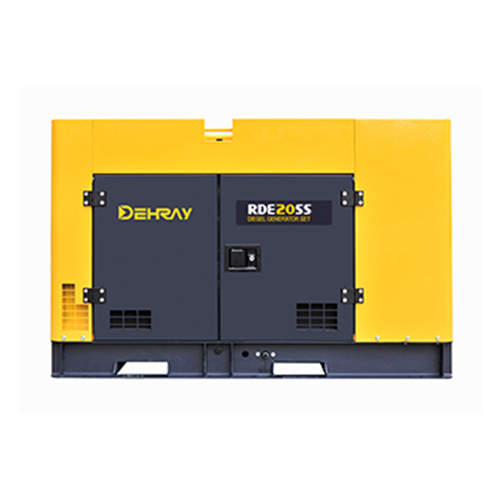

Model				RDE20SS		RDE26SS
GenSet	Rated frequency		HZ	50	60	50	60
	Prime power		KVA	18	20	24	26
			KW	18	20	24	26
	Standby power		KVA	20	24	26	28
			KW	20	24	26	28
	Rated voltage		V	115/230	120/240	115/230	120/240
	Rated current		A	156.5/78.2	166.7/83.3	208.7/104.4	216.7/108.3
	Rated rotation speed		r/min	1500	1800	1500	1800
Alternator	Generator manufacture			XINGNUO		XINGNUO
	Generator type			XND184F-1	XND184F-2	XND184H-1	XND184H-2
	Pole No.			4		4
	Excitation mode			Brushless, self-excitation and constant voltage(with AVR)		Brushless, self-excitation and constant voltage(with AVR)
	Power factor		COSΦ	1.0		1.0
	Insulation grade			H		H
Engine	Engine Manufacture			WEICHAI		WEICHAI
	Engine type			WP2.3D25E200	WP2.3D30E201	WP2.3D33E200	WP2.3D36E201
	Stucture type			4-cylinder, in-lined, 4-stroke, direct-injected, water-cooled		4-cylinder, in-lined, 4-stroke, direct-injected, turbo charge,water-cooled
	Bore×stroke		mm	89×92		89×92
	Displacement		L	2.289		2.289
	Compression ratio			17.5:1		17.5:1
	Rated power		KW	23	27	30	33
	Cooling water volume	Engine	L	5		5
		Radiator		8		8
	Lubrication system			Pressure splashed		Pressure splashed
	Lube oil brand			Above CD grade or SAE 10W-30, 15W-40		Above CD grade or SAE 10W-30, 15W-40
	Lubrication capacity		L	8		8
	Starter system			12V electric start		12V electric start
	Starter motor capacity		V-KW	12V 3.5KW		12V 3.5KW
	Charging generator capacity		V-A	14V 35A		14V 35A
	Battery capacity×Number		V-Ah	12V 80Ah ×1个		12V 80Ah ×1个
	Fuel consumption		g/KW.h	224	210	212	210
	Fuel type			0#(summer)-10#(winter)-35#(chillness) diesel		0#(summer)-10#(winter)-35#(chillness) diesel
GenSet	Control panel type			HGM4010N		HGM4010N
	Output	Receptacle		2-single phase		2 single phase
		Connection pole		with		with
	Noise level(@7m)		dB(A)	51	53	51	53
	Fuel tank capacity		L	90		90
	Air filter inlet flow			240m3/h		240m3/h
	Exhaust temperature		℃	650		650
	Overall dimensions		mm	1950×950×1200		1950×950×1200
	Packaging			Plywood board + corrugated box		Plywood board + corrugated box
	Packing dimension		mm	2020×1060×1350		2020×1060×1350
	Net weight		kg	960		1000

Model				RDE35SS		RDE25SS3
GenSet	Rated frequency		HZ	50	60	50	60
	Prime power		KVA	30	35	22.5	25
			KW	30	35	18	20
	Standby power		KVA	33	38.5	25	30
			KW	33	38.5	20	24
	Rated voltage		V	115/230	120/240	400/230	416/240
	Rated current		A	260.9/130.4	291.7/145.8	32.6	34.7
	Rated rotation speed		r/min	1500	1800	1500	1800
Alternator	Generator manufacture			XINGNUO		XINGNUO
	Generator type			XN184E-1	XN184E-2	XN184G-1	XN184F-2
	Pole No.			4		4
	Excitation mode			Brushless, self-excitation and constant voltage(with AVR)		Brushless, self-excitation and constant voltage(with AVR)
	Power factor		COSΦ	1.0		0.8(lag)
	Insulation grade			H		H
Engine	Engine Manufacture			WEICHAI		WEICHAI
	Engine type			WP2.3D40E200	WP2.3D47E201	WP2.3D25E200	WP2.3D30E201
	Stucture type			4-cylinder, in-lined, 4-stroke, direct-injected, water-cooled		4-cylinder, in-lined, 4-stroke, direct-injected, water-cooled
	Bore×stroke		mm	89×92		89×92
	Displacement		L	2.289		2.289
	Compression ratio			17.5:1		17.5:1
	Rated power		KW	36	43	23	27
	Cooling water volume	Engine	L	5		5
		Radiator		8		8
	Lubrication system			Pressure splashed		Pressure splashed
	Lube oil brand			Above CD grade or SAE 10W-30, 15W-40		Above CD grade or SAE 10W-30, 15W-40
	Lubrication capacity		L	8		8
	Starter system			12V electric start		12V electric start
	Starter motor capacity		V-KW	12V 3.5KW		12V 3.5KW
	Charging generator capacity		V-A	14V 35A		14V 35A
	Battery capacity×Number		V-Ah	12V 80Ah ×1个		12V 80Ah ×1个
	Fuel consumption		g/KW.h	216	213	224	210
	Fuel type			0#(summer)-10#(winter)-35#(chillness) diesel		0#(summer)-10#(winter)-35#(chillness) diesel
GenSet	Control panel type			HGM4010N		HGM4010N
	Output	Receptacle		2 single phase		2 single phase
		Connection pole		with		with
	Noise level(@7m)		dB(A)	51	53	51	53
	Fuel tank capacity		L	90		90
	Air filter inlet flow			240m3/h		240m3/h
	Exhaust temperature		℃	650		650
	Overall dimensions		mm	1950×950×1200		1950×950×1200
	Packaging			Plywood board + corrugated box		Plywood board + corrugated box
	Packing dimension		mm	2020×1060×1350		2020×1060×1350
	Net weight		kg	1050		960

Model				RDE32SS3		RDE43SS3
GenSet	Rated frequency		HZ	50	60	50	60
	Prime power		KVA	30	32.5	37.5	43.75
			KW	24	26	30	35
	Standby power		KVA	32.5	35	41	48
			KW	26	28	33	38.5
	Rated voltage		V	400/230	416/240	400/230	416/240
	Rated current		A	43.5	45.1	47.8	60.8
	Rated rotation speed		r/min	1500	1800	1500	1800
Alternator	Generator manufacture			XINGNUO		XINGNUO
	Generator type			XND184J-1	XND184J-2	XN184H-1	XN184H-2
	Pole No.			4		4
	Excitation mode			Brushless, self-excitation and constant voltage(with AVR)		Brushless, self-excitation and constant voltage(with AVR)
	Power factor		COSΦ	0.8(lag)		0.8(lag)
	Insulation grade			H		H
Engine	Engine Manufacture			WEICHAI		WEICHAI
	Engine type			WP2.3D33E200	WP2.3D36E201	WP2.3D40E200	WP2.3D47E201
	Stucture type			4-cylinder, in-lined, 4-stroke, direct-injected, turbo charge,water-cooled		4-cylinder, in-lined, 4-stroke, direct-injected, turbo charge,water-cooled
	Bore×stroke		mm	89×92		89×92
	Displacement		L	2.289		2.289
	Compression ratio			17.5:1		17.5:1
	Rated power		KW	30	33	36	43
	Cooling water volume	Engine	L	5		5
		Radiator		8		8
	Lubrication system			Pressure splashed		Pressure splashed
	Lube oil brand			Above CD grade or SAE 10W-30, 15W-40		Above CD grade or SAE 10W-30, 15W-40
	Lubrication capacity		L	8		8
	Starter system			12V electric start		12V electric start
	Starter motor capacity		V-KW	12V 3.5KW		12V 3.5KW
	Charging generator capacity		V-A	14V 35A		14V 35A
	Battery capacity×Number		V-Ah	12V 80Ah ×1个		12V 80Ah ×1个
	Fuel consumption		g/KW.h	212	210	216	213
	Fuel type			0#(summer)-10#(winter)-35#(chillness) diesel		0#(summer)-10#(winter)-35#(chillness) diesel
GenSet	Control panel type			HGM4010N		HGM4010N
	Output	Receptacle		2 single phase		2 single phase
		Connection pole		with		with
	Noise level(@7m)		dB(A)	51	53	51	53
	Fuel tank capacity		L	90		90
	Air filter inlet flow			240m3/h		240m3/h
	Exhaust temperature		℃	650		650
	Overall dimensions		mm	1950×950×1200		1950×950×1200
	Packaging			Plywood board + corrugated box		Plywood board + corrugated box
	Packing dimension		mm	2020×1060×1350		2020×1060×1350
	Net weight		kg	1000		1050
