Sewage Pump

Our trash pumps range is ideal for messy jobs and dirty water. It has been developed to handle high volumes of water filled with solids. Deep impeller blades and a large volute discharge opening can pass suspended sticks, stones and debris without clogging the pump or harming its components. Designed to be user-friendly, these self-priming pumps remain durable under the rough.

Excellent performance
Water pump adopts DEHRAY engine as power and has incomparable economic engine oil and fuel consumption. It's very efficient, emitting fewer emissions than a regular 2-Stroke engine and provides lower noise levels.
High flow rate
Designed with an abrasion-resistant cast iron volute and impeller, RDP models have specially designed vanes for a larger discharge capacity, The debris size capacity allows them to deal with gravel and other suspended debris.
Easy maintenance
Cleaning the inside of the pumps can be performed by just removing a few bolts.
Durable construction
Main parts of the pump are designed for wear and corrosion resistance.
Easy to start
DEHRAY is also easy to start and easy to use. Our sewage pump engines are perfectly matched and DEHRAY engineered for quality and precision.

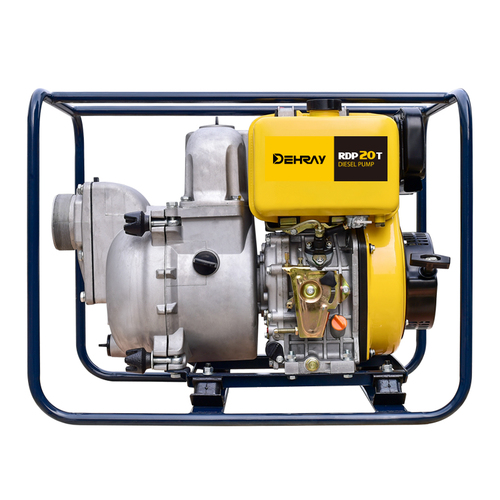

RDP20T
Sewage Pump
Deep impeller blades and a large volute discharge opening can pass suspended sticks, stones and debris without clogging the pump or harming its components. Designed to be user-friendly, these self-priming pumps remain durable under the rough.

Superior absorption
Excellent durability
Easy to start
Fuel efficient and quiet
Contact us

High flow rate

Designed with an abrasion-resistant cast iron volute and impeller, RDP models have specially designed vanes for a larger discharge capacity, The debris size capacity allows them to deal with gravel and other suspended debris.



Excellent performance

Water pump adopts DEHRAY engine as power and has incomparable economic engine oil and fuel consumption. It's very efficient, emitting fewer emissions than a regular 2-Stroke engine and provides lower noise levels.



Easy maintenance

Cleaning the inside of the pumps can be performed by just removing a few bolts.



Durable construction

Main parts of the pump are designed for wear and corrosion resistance.

Basic parameters
Type   Diesel pump
Water inlet pipe nominal diameter mm (in) 50 (2")
Rated capacity  m³/h 42
Rated total head m 26
Max.suction head m 8.0
Self-priming time s/4m 60
Rotaion speed r/min 3600
Engine model   RD170F
Max. power kW/(r/min) 2.8/3600
Displacement cm³ 211
Fuel type   0#(summer), -10#(winter), -35#(chillness) diesel
Starter system   Recoil starter
Noise level dB(A)/1m 74
Net weight kg 48
Overall dimension mm (LxWxH) 655x435x565
