rates depending on outdoor air temperature. Compatible with lead acid and AGM-style batteries.
•Main line circuit breaker: Protects generator from overload.
•Engine warm-up: Ensures engine is ready to assume the load, setpoint approximately 5 seconds.
•Programmable seven day exercise: Operates engine to prevent oil seal drying and damage between power outages by running the generator for 5 minutes every other week. Also offers a selectable setting for
weekly or monthly operation providing flexibility and potentially lower fuel costs to the owner.
•Electronic governor: Maintains constant 50 Hz frequency.
•Utility voltage sensing: Constantly monitors utility voltage, setpoints 65% dropout, 80% pick-up, of standard voltage.
•Sealed, raised buttons: Smooth, weather-resistant user interface for programming and operations.
GAS GENERATOR
DEHRAY gas generators are everyday working machines in the world.If you need a high value, rugged workhorse generator on the job, on the farm, or around the home site, DEHRAY has a gas Series model perfect for your application.
More powerful
A high efficiency combustion system ensures complete combustion. A large muffler dampens exhaust noise and engine sounds are contained in a double-walled structure and absorbed by a special liner. Strong power with an easy start air cooled engine.
Wide application
These gas generators are widely used for a diverse range of needs, such as an emergency power source in the event of a power failure, outdoor construction work, outdoor leisure activities and for disasters and other emergencies.
Delivering the power you need
Powerful, flexible, versatile, reliable, durable; DEHRAY Generators have it covered on every level.
Control panel
The generator is operated efficiently from a control panel designed with the user in mind. Circuit breakers protect the generator from overloads.

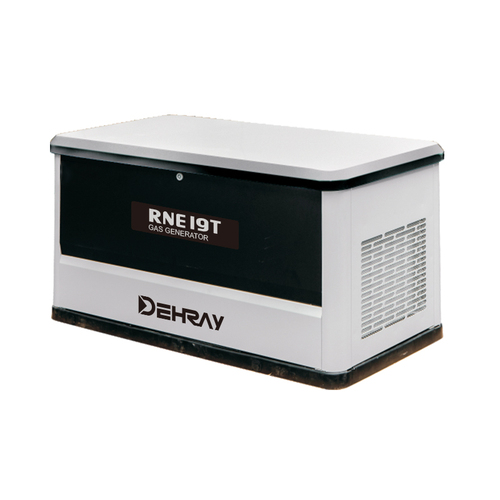

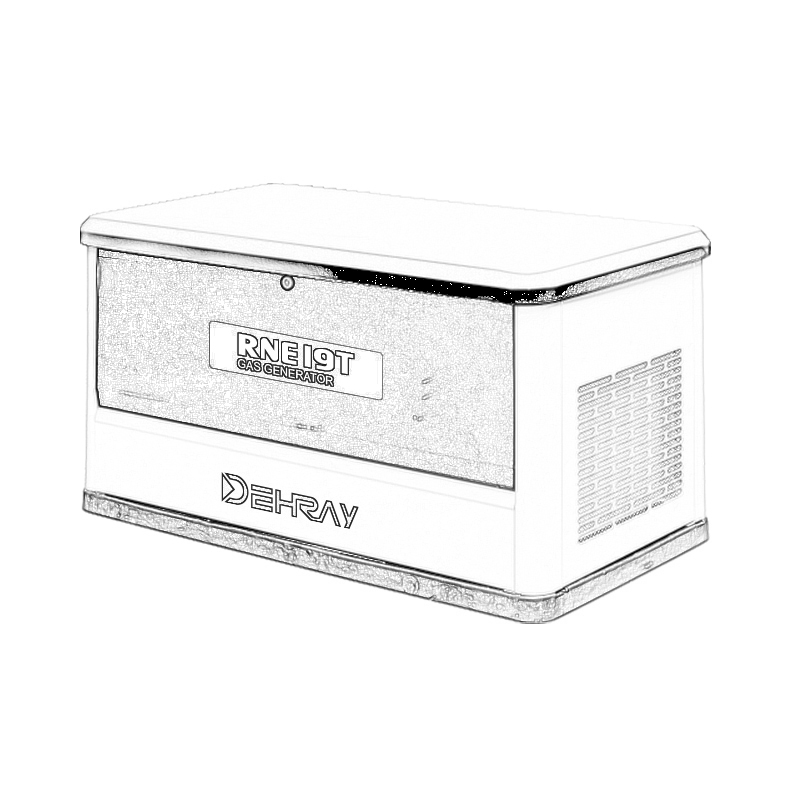

RNE19T
GAS GENERATOR
•Smart battery charger: Delivers charge to the battery only when needed at varying
rates depending on outdoor air temperature. Compatible with lead acid and AGM-style batteries.
•Main line circuit breaker: Protects generator from overload.
•Engine warm-up: Ensures engine is ready to assume the load, setpoint approximately 5 seconds.
•Programmable seven day exercise: Operates engine to prevent oil seal drying and damage between power outages by running the generator for 5 minutes every other week. Also offers a selectable setting for
weekly or monthly operation providing flexibility and potentially lower fuel costs to the owner.
•Electronic governor: Maintains constant 50 Hz frequency.
•Utility voltage sensing: Constantly monitors utility voltage, setpoints 65% dropout, 80% pick-up, of standard voltage.
•Sealed, raised buttons: Smooth, weather-resistant user interface for programming and operations.
| MODEL | RNE19T | |||||
| ALTERNATOR 、SPESIFICATION | Type | Synchronous generator, a rotating magnetic field | ||||
| Volt.reg.system | AVR | |||||
| Brush | BRUSH | |||||
| Pole | 2 | |||||
| THD@full load | ≤5% | |||||
| Insulation | H | |||||
| Stator winding material | COPPER | |||||
| Rotor winding material | COPPER | |||||
| Connection method | DIRECT COUPLING | |||||
| VOLTAGE STEADY | Type | ELECTRON | ||||
| Sensing | SINGLE | |||||
| Voltage adjusting | ± 5% | |||||
| GOVERNOR | Type | Electronic | ||||
| No load to full load frequency regulation | SYNCHRONISM | |||||
| Steady frequency adjustment | ± 2.5% | |||||
| CONTROLER SPECIFICATION | Controler brand | SMART GEN | ||||
| Controler location | INSIDE,UP OF ALTERNATOR | |||||
| Manufaturer/part# | MGC310 | |||||
| Auto/manual/shut down | YES | |||||
| Alternator voltage detection | YES | |||||
| Mains voltage detection | NO | |||||
| Low oil protection | YES | |||||
| Over frequency protection | YES | |||||
| Low frequency protection | YES | |||||
| SOUNDPROOF CANOPY SPECIFICATION | Canopy | ALIMINUM | ||||
| Warranty(year) | 1 | |||||
| Protection level | IP 23 | |||||
| Emergency stop switch | YES | |||||
| Fuel solenoid valve | YES | |||||
| Enclosed muffler | YES | |||||
| Sound insulation | Soundproof cotton | |||||
| Ng pressure range kpa | 1.3-2 | |||||
| Lpg pressure range kpa | 2.4-3.1 | |||||
| GEN-SET DIMENSIONS | Nuit dimension(l×w×h) mm | 1420×675×735 | ||||
| Package dimension(l×w×h) mm | 1520×800×850 | |||||
| Net weight( kg) | 250 | |||||
| Gross weight(kg) | 300 | |||||
| 20/40 gp container | 63（40HQ） | |||||
| GEN-SET OUTPUT POWER | Model | R10000EM / R10000EPM | R15000EM /R17000EPM | R19000EM/ R20000EPM | ||
| Rated power（gasoline） | - | - | - | |||
| Rated power（lpg) | 9KW / 10KW | 13KW / 15KW | 17KW / 20KW | |||
| Max power (lpg) | 10KW / 11KW | 13.5KW / 16.5KW | 19KW / 22KW | |||
| Rated power（ng） | 8KW / 9KW | 13KW / 15KW | 16KW / 18KW | |||
| Max power (ng) | 9KW / 10KW | 13.5KW / 16.5KW | 16.5KW / 20KW | |||
| Rated volt (v) | 230V / 120V / 240V | 230V/ 120V / 240V | 230V/ 120V / 240V | |||
| Rated current（gasoline） | — | ― | ― | |||
| Rated current（lpg） | 39.1 / 41.7 | 56.5 / 62.5 | 73.9 / 83.3 | |||
| Rated current（ng） | 34.8 / 37.5 | 56.5 / 56.3 | 69.6 / 75 | |||
| Phase | SINGLE | SINGLE | SINGLE | |||
| Engine/alternator rpm（rpm） | 3000 / 3600 | 3000 / 3600 | 3000 / 3600 | |||
| Power factor | 1.0 | 1.0 | 1.0 | |||
| ENGINE SPESIFICATION | Model | R10000EM / R10000EPM | R15000EM /R17000EPM | R19000EM/ R20000EPM | ||
| Engine model | RATO | RATO | RATO | |||
| Engine part | R740D | R999D | R999D | |||
| No. Of cylinders and build | 2 - V type | 2 - V type | 2 - V type | |||
| Displacement(l) | 740CC | 999CC | 999CC | |||
| Compression ratio | 8.5:1 | 9.5:1 | 9.5:1 | |||
| Ignition system | Electronic ignition | Electronic ignition | Electronic ignition | |||
| Electric start | YES | YES | YES | |||
| Starting motor | 12V | 12V | 12V | |||
| Bore&stroke(mm×mm) | 82×70 | 90×78.5 | 90×78.5 | |||
| Aspiration type | NATURAL ASPIRATION | NATURAL ASPIRATION | NATURAL ASPIRATION | |||
| Oil capacity(l) | 1.8L | 2.5L | 2.5L | |||
| Rotary oil filter | YES | YES | YES | |||
| Charging method | 12V/5A charhing coil | 12V/7A charhing coil | 12V/7A charhing coil | |||
| Recommend battery start current(cca) | 350CCA | 500CCA | 500CCA | |||
| Cooling system | AIR COOLED | AIR COOLED | AIR COOLED | |||
| Low oil pressure shutdown | YES | YES | YES | |||
| ECU | YES | YES | YES | |||
| Gas valve | YES | YES | YES | |||
